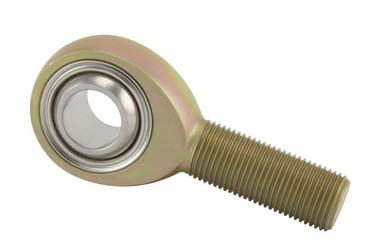

RBC Bearing ME12

  • SKUFG14WX
  • Brand
  • Manufacturer Part #ME12
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing ME12 Specifications

  • Ball Diameter:
    1.2500 in
  • Ball Material:
    440C Stainless Steel
  • Ball Width:
    0.8750 in
  • Bore Diameter:
    0.7500 in
  • Grade:
    Military
  • Head Diameter:
    1.7750 in
  • Head Width:
    0.6400 in
  • Housing Material:
    4340 Alloy Steel
  • Length to Ball Center:
    1.6870 in
  • Lubrication Type:
    Self-Lubricatable
  • Manufacturer UPC Number:
    637400198817
  • Maximum Operating Temperature:
    250ºF
  • Misalignment Angle:
    7º
  • Overall Height:
    3.7625 in
  • Race Material:
    17-4 PH Heat Treated, PTFE
  • Radial Static Load Capacity:
    29300 lbf
  • Rod End Type:
    Male Threaded
  • Series:
    ME Series Self-Lubricating
  • Shank Thread Length:
    1.6870 in
  • Shank Thread Size:
    42463
  • Thread Direction:
    Right Hand
  • Thread Type:
    UNJF-3A
  • Weight:
    0.64 lbs
