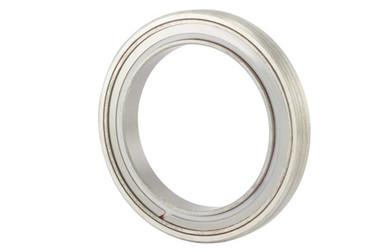

RBC Bearing KP48BSFS464

  • SKUHR37KG
  • Brand
  • Manufacturer Part #KP48BSFS464
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing KP48BSFS464 Specifications

  • Application:
    Airframe Control
  • Bearing Material:
    52100 Bearing Quality Steel
  • Bearing Type:
    Ball Bearing
  • Bore Diameter:
    3.0000 in
  • Cage Material:
    No Cage
  • Closure Type:
    Double Sealed
  • Dynamic Load Capacity:
    27500 lbf
  • Finish/Coating:
    Cadmium Plated
  • Inner Ring Width:
    0.5310 in
  • Internal Clearance:
    C0
  • Maximum RPM:
    500 rpm
  • Outer Ring Width:
    0.4690 in
  • Outside Diameter:
    4.2500 in
  • Overall Width:
    0.5310 in
  • Precision Rating:
    Not Rated
  • Seal Type:
    PTFE
  • Series:
    RBC Airframe Bearing - KP BS Series
  • Standards Met:
    SAE-AS27648
  • Static Load Capacity:
    27500 lbf
  • Weight:
    0.69 lbs
