RBC Bearing JB042XP0-RBC

  • SKUYN24CJ
  • Brand
  • Manufacturer Part #JB042XP0-RBC
  • Available to Order

    Expected to Arrive ***

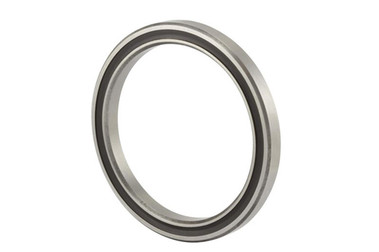

 Images may not be exact. Please refer to Part # and Description.

$888.39

RBC Bearing JB042XP0-RBC Specifications

  • Axial Dynamic Load Capacity:
    2230 lbf
  • Axial Static Load Capacity:
    4570 lbf
  • Bearing Material:
    52100 Bearing Quality Steel
  • Cage Material:
    Brass/Composite
  • Closure Type:
    Sealed(Molded)
  • Fillet Radius:
    0.032 in
  • Finish/Coating:
    Uncoated
  • Inner Ring Width:
    0.3125 in
  • Inside Diameter:
    4.2500 in
  • Internal Clearance:
    C0
  • Maximum RPM:
    2630 rpm
  • Operating Temperature Range:
    -65 to +250°F
  • Outer Ring Width:
    0.3125 in
  • Outside Diameter:
    4.8750 in
  • Overall Width:
    0.3125 in
  • Precision Rating:
    ABEC 1
  • Radial Dynamic Load Capacity:
    1120 lbf
  • Radial Static Load Capacity:
    1830 lbf
  • Series:
    JB
  • Standards Met:
    AISI 52100
  • Weight:
    0.31 lbs
