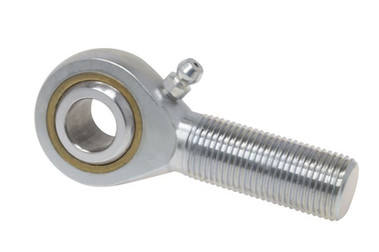

RBC Bearing HMXL8G

  • SKUVY61GH
  • Brand
  • Manufacturer Part #HMXL8G
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$96.83

RBC Bearing HMXL8G Specifications

  • Ball Diameter:
    0.9370 in
  • Ball Material:
    52100 Alloy Steel
  • Ball Width:
    0.6250 in
  • Bore Diameter:
    0.5000 in
  • Grade:
    Precision Extra Capacity
  • Head Diameter:
    1.3120 in
  • Head Width:
    0.5000 in
  • Housing Material:
    4130 or 4340 Alloy Steel
  • Length to Ball Center:
    2.4380 in
  • Lubrication Type:
    Lubricatable
  • Maximum Operating Temperature:
    250ºF
  • Misalignment Angle:
    6º
  • Operating Temperature Range:
    Max 250°F
  • Overall Height:
    3.0940 in
  • Race Material:
    Aluminum Bronze
  • Radial Static Load Capacity:
    11920 lbf
  • Rod End Type:
    Male Threaded
  • Series:
    HMXL Series 4 Piece - Metal-to-Metal
  • Shank Thread Length:
    1.5000 in
  • Shank Thread Size:
    43317
  • Thread Direction:
    Left Hand
  • Thread Type:
    UNF-3A
  • Weight:
    0.3 lbs
