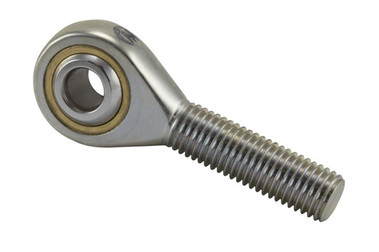

RBC Bearing HMX6

  • SKULN51GW
  • Brand
  • Manufacturer Part #HMX6
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$77.44

RBC Bearing HMX6 Specifications

  • Ball Diameter:
    0.7180 in
  • Ball Material:
    52100 Alloy Steel
  • Ball Width:
    0.5000 in
  • Bore Diameter:
    0.3750 in
  • Finish/Coating:
    Steel
  • Grade:
    Precision Extra Capacity
  • Head Diameter:
    1.0000 in
  • Head Width:
    0.4060 in
  • Housing Material:
    4130 or 4340 Alloy Steel
  • Length to Ball Center:
    1.9380 in
  • Lubrication Type:
    Non-Lubricatable
  • Maximum Operating Temperature:
    250ºF
  • Misalignment Angle:
    6º
  • Operating Temperature Range:
    Max 250°F
  • Overall Height:
    2.4380 in
  • Race Material:
    Aluminum Bronze
  • Radial Static Load Capacity:
    11160 lbf
  • Rod End Type:
    Male Threaded
  • Series:
    HMX Series 4 Piece - Metal-to-Metal
  • Shank Thread Length:
    1.2500 in
  • Shank Thread Size:
    7/16-20
  • Thread Direction:
    Right Hand
  • Thread Type:
    UNF-3A
  • Weight:
    0.13 lbs
