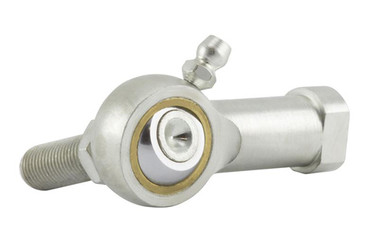

RBC Bearing HFL6CGY

  • SKUEP35GS
  • Brand
  • Manufacturer Part #HFL6CGY
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing HFL6CGY Specifications

  • Ball Diameter:
    0.7180 in
  • Ball Material:
    52100 Alloy Steel
  • Ball Width:
    0.5000 in
  • Bore Diameter:
    0.3750 in
  • Grade:
    Precision Aircraft
  • Head Diameter:
    1.0000 in
  • Head Width:
    0.4060 in
  • Housing Material:
    Carbon Steel
  • Length to Ball Center:
    1.6250 in
  • Lubrication Type:
    Lubricatable
  • Maximum Operating Temperature:
    250ºF
  • Misalignment Angle:
    6º
  • Operating Temperature Range:
    Max 250°F
  • Overall Height:
    2.1250 in
  • Race Material:
    Brass
  • Radial Static Load Capacity:
    4450 lbf
  • Rod End Type:
    Female Threaded with Male Stud
  • Series:
    HFL Series 4 Piece - Metal-to-Metal
  • Shank Thread Length:
    0.9370 in
  • Shank Thread Size:
    45507
  • Thread Direction:
    Left Hand
  • Thread Type:
    UNF-3B
  • Weight:
    0.12 lbs
