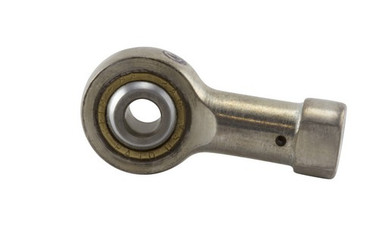

RBC Bearing HF2AM Specifications
-
Bearing Material:52100 Bearing Quality Steel
-
Enclosure:Open
-
Housing Material:Carbon Steel
-
Inner Diameter:0.1562";Inner Ring Width=0.281""
-
Length To Center of Ball:0.875";Operating Temperature=<
-
Outer Diameter:0.562";Outer Ring Width=0.219""
-
Race Material:Brass
-
Sphere Diameter:0.375";Tilt Angle=7º"
-
Type:Female Spherical Plain Rod End, Precision Aircraft Series
-
UPC Code:637400154974
-
Width Across Wrench Flats:0.281";Width=0.281""
