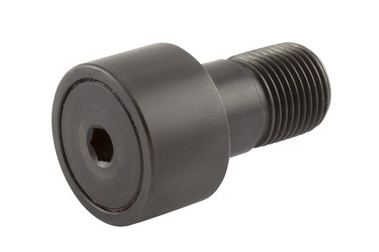

RBC Bearing H36LW

  • SKUYX90OE
  • Brand
  • Manufacturer Part #H36LW
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$39.12

RBC Bearing H36LW Specifications

  • Bearing Type:
    Needle Bearing
  • Clamp Torque:
    390 lbf
  • Dynamic Capacity:
    1900 lbf
  • EAN or UPC:
    637400005917
  • Enclosure:
    Sealed
  • End Type:
    Hex Hole
  • Housing Bore:
    5/8 in
  • Inch/Metric:
    Inch
  • Limiting Speed:
    4500 rpm
  • Lube Fitting Size:
    3/16 in
  • Lube Hole Center:
    1/4 in
  • Lube Hole Diameter:
    0.093 in
  • Material:
    Steel
  • Overall Length:
    1 21/32 in
  • Package Quantity:
    1.0 Piece
  • Roller Dia.:
    1 1/8 in
  • Roller Type:
    Straight
  • Roller Width:
    5/8 in
  • Static Capacity:
    4100 lbf
  • Stud Dia.:
    5/8 in
  • Stud Length:
    1 in
  • Stud Type:
    Heavy
  • Thread Length:
    1/2 in
  • Thread Pitch:
    N/A
  • Thread Size:
    44048
  • Thread Type:
    UNF
  • Threads per Inch:
    18
  • Track Capacity (40 HRC):
    1900 lbf
  • Weight:
    0.25 LB
