RBC Bearing F12CRY

  • SKUWZ40MW
  • Brand
  • Manufacturer Part #F12CRY
  • Available to Order

    Expected to Arrive ***

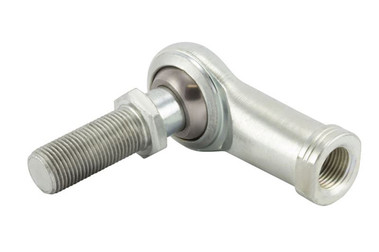

 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing F12CRY Specifications

  • Ball Diameter:
    1.3120 in
  • Ball Material:
    52100 Alloy Steel
  • Ball Width:
    0.8750 in
  • Bore Diameter:
    0.7500 in
  • Grade:
    Commercial Extra Capacity
  • Head Diameter:
    1.7500 in
  • Head Width:
    0.6870 in
  • Housing Material:
    Carbon Steel
  • Length to Ball Center:
    2.8750 in
  • Lubrication Type:
    Non-Lubricatable
  • Maximum Operating Temperature:
    250ºF
  • Misalignment Angle:
    7º
  • Operating Temperature Range:
    Max 250°F
  • Overall Height:
    3.7500 in
  • Race Material:
    Steel
  • Radial Static Load Capacity:
    14000 lbf
  • Rod End Type:
    Female Threaded with Male Stud
  • Series:
    F Series 2 Piece - Metal-to-Metal
  • Shank Thread Length:
    1.7500 in
  • Shank Thread Size:
    42463
  • Thread Direction:
    Right Hand
  • Thread Type:
    UNF-3B
  • Weight:
    0.64 lbs
