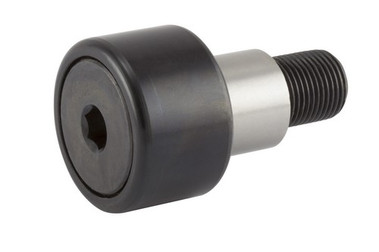

RBC Bearing CS72LWX

  • SKUMH61OR
  • Brand
  • Manufacturer Part #CS72LWX
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$176.46

RBC Bearing CS72LWX Specifications

  • Bearing Type:
    Needle Bearing
  • Clamp Torque:
    900 lbf
  • Dynamic Capacity:
    8700 lbf
  • EAN or UPC:
    637400005153
  • Eccentric Bushing Diameter:
    1 3/16 in
  • Eccentric Bushing Length:
    1 in
  • Eccentricity:
    0.03 in
  • Enclosure:
    Sealed
  • End Type:
    Hex Hole
  • Hex Size:
    7/16 in
  • Housing Bore:
    1 3/16 in
  • Inch/Metric:
    Inch
  • Limiting Speed:
    2200 rpm
  • Lube Fitting Size:
    3/16 in
  • Material:
    Steel
  • Overall Length:
    3 9/32 in
  • Package Quantity:
    1.0 Piece
  • Roller Dia.:
    2 1/4 in
  • Roller Type:
    Crowned
  • Roller Width:
    1 1/4 in
  • Static Capacity:
    16700 lbf
  • Stud Dia.:
    7/8 in
  • Stud Length:
    2 in
  • Stud Type:
    Eccentric
  • Thread Length:
    1 in
  • Thread Pitch:
    N/A
  • Thread Size:
    44050
  • Thread Type:
    UNF
  • Threads per Inch:
    14
  • Track Capacity (40 HRC):
    7300 lbf
  • Weight:
    1.75 LB
