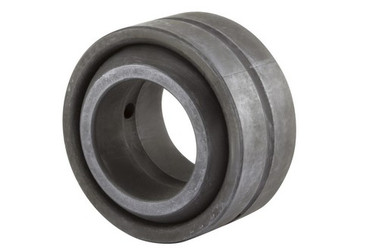

RBC Bearing BH2024L

  • SKUXI45CF
  • Brand
  • Manufacturer Part #BH2024L
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$356.81

RBC Bearing BH2024L Specifications

  • Ball Material:
    Ball Bearing Steel, Hardened & Ground
  • Dynamic Load Rating:
    21200 lbf
  • EAN or UPC:
    637400000103
  • Enclosure:
    Unsealed
  • I.D.:
    1 1/4 in
  • Inner Ring Width:
    1.39 in
  • Insert Material:
    N/A
  • O.D.:
    2 7/16 in
  • Outer Race Material:
    Bearing Quality Steel
  • Outer Ring Width:
    1 1/8 in
  • Radial Load Rating [MAX]:
    84800 lbf
  • Self-Lubricating:
    No
  • Spherical Diameter:
    2.155 in
  • Static Load Rating [MAX]:
    84800 lbf
  • Thrust Load Rating [MAX]:
    16600 lbf
  • Tilting Angle [MAX]:
    15 degrees
  • Weight:
    1.13 LB
