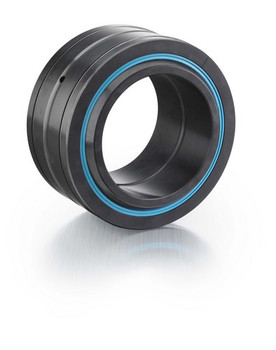

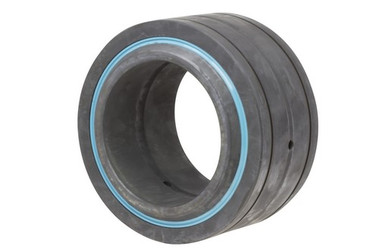

RBC Bearing B969LSS

  • SKUHO72GR
  • Brand
  • Manufacturer Part #B969LSS
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$2,246.04

RBC Bearing B969LSS Specifications

  • Ball Material:
    Ball Bearing Steel, Hardened & Ground
  • Dynamic Load Rating:
    294200 lbf
  • EAN or UPC:
    637400002978
  • Enclosure:
    Double Sealed
  • I.D.:
    6 in
  • Inner Ring Width:
    4 3/4 in
  • Insert Material:
    N/A
  • O.D.:
    8 3/4 in
  • Outer Race Material:
    Bearing Quality Steel
  • Outer Ring Width:
    4 1/8 in
  • Radial Load Rating [MAX]:
    1.177e+006 lbf
  • Self-Lubricating:
    No
  • Spherical Diameter:
    8.156 in
  • Static Load Rating [MAX]:
    1.177e+006 lbf
  • Thrust Load Rating [MAX]:
    387600 lbf
  • Tilting Angle [MAX]:
    7 degrees
  • Weight:
    38.8 LB
