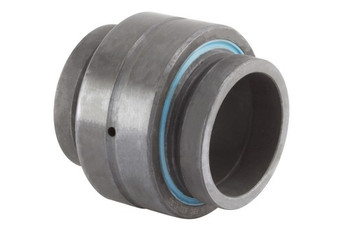

RBC Bearing B56EL

  • SKUIH50GP
  • Brand
  • Manufacturer Part #B56EL
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$1,754.78

RBC Bearing B56EL Specifications

  • Ball Material:
    Ball Bearing Steel, Hardened & Ground
  • Dynamic Load Rating:
    115700 lbf
  • EAN or UPC:
    637400002091
  • Enclosure:
    Unsealed
  • I.D.:
    3 1/2 in
  • Inner Ring Width:
    5 1/4 in
  • Insert Material:
    N/A
  • O.D.:
    5 1/2 in
  • Outer Race Material:
    Bearing Quality Steel
  • Outer Ring Width:
    2 5/8 in
  • Radial Load Rating [MAX]:
    463000 lbf
  • Self-Lubricating:
    No
  • Spherical Diameter:
    5.04 in
  • Static Load Rating [MAX]:
    463000 lbf
  • Thrust Load Rating [MAX]:
    109200 lbf
  • Tilting Angle [MAX]:
    5 degrees
  • Weight:
    12.9 LB
