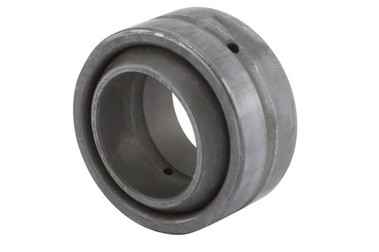

RBC Bearing B32L

  • SKUDK25IL
  • Brand
  • Manufacturer Part #B32L
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$147.58

RBC Bearing B32L Specifications

  • Ball Material:
    Ball Bearing Steel, Hardened & Ground
  • Dynamic Load Rating:
    37700 lbf
  • EAN or UPC:
    637400001513
  • Enclosure:
    Unsealed
  • I.D.:
    2 in
  • Inner Ring Width:
    1 3/4 in
  • Insert Material:
    N/A
  • O.D.:
    3 3/16 in
  • Outer Race Material:
    Bearing Quality Steel
  • Outer Ring Width:
    1 1/2 in
  • Radial Load Rating [MAX]:
    150900 lbf
  • Self-Lubricating:
    No
  • Spherical Diameter:
    2 7/8 in
  • Static Load Rating [MAX]:
    150900 lbf
  • Thrust Load Rating [MAX]:
    31900 lbf
  • Tilting Angle [MAX]:
    12 degrees
  • Weight:
    2.07 LB
