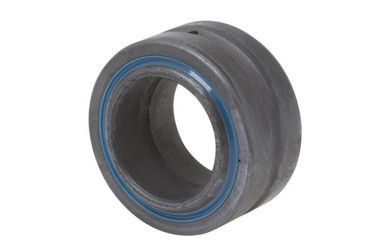

RBC Bearing B22LSS

  • SKUSO79GT
  • Brand
  • Manufacturer Part #B22LSS
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$83.77

RBC Bearing B22LSS Specifications

  • Ball Material:
    Ball Bearing Steel, Hardened & Ground
  • Dynamic Load Rating:
    17400 lbf
  • EAN or UPC:
    637400001254
  • Enclosure:
    Double Sealed
  • I.D.:
    1 3/8 in
  • Inner Ring Width:
    1 3/16 in
  • Insert Material:
    N/A
  • O.D.:
    2 3/16 in
  • Outer Race Material:
    Bearing Quality Steel
  • Outer Ring Width:
    1 1/32 in
  • Radial Load Rating [MAX]:
    69800 lbf
  • Self-Lubricating:
    No
  • Spherical Diameter:
    1.937 in
  • Static Load Rating [MAX]:
    69800 lbf
  • Thrust Load Rating [MAX]:
    13500 lbf
  • Tilting Angle [MAX]:
    7 degrees
  • Weight:
    0.77 LB
