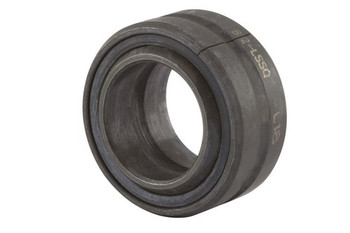

RBC Bearing B12L

  • SKUAS54NO
  • Brand
  • Manufacturer Part #B12L
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$40.38

RBC Bearing B12L Specifications

  • Ball Material:
    Ball Bearing Steel, Hardened & Ground
  • Dynamic Load Rating:
    5300 lbf
  • EAN or UPC:
    637400000783
  • Enclosure:
    Unsealed
  • I.D.:
    3/4 in
  • Inner Ring Width:
    0.656 in
  • Insert Material:
    N/A
  • O.D.:
    1 1/4 in
  • Outer Race Material:
    Bearing Quality Steel
  • Outer Ring Width:
    9/16 in
  • Radial Load Rating [MAX]:
    21200 lbf
  • Self-Lubricating:
    No
  • Spherical Diameter:
    1.08 in
  • Static Load Rating [MAX]:
    21200 lbf
  • Thrust Load Rating [MAX]:
    3900 lbf
  • Tilting Angle [MAX]:
    14 degrees
  • Weight:
    0.13 LB

 Help us improve our product information

Description

Related Products

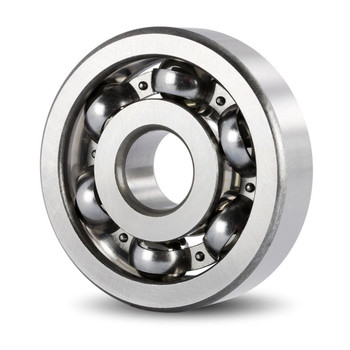

B12L NBR, GENERAL LINE
