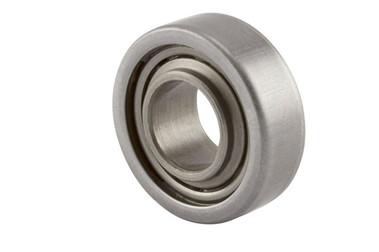

RBC Bearing 40020VBF53

  • SKUWP67JN
  • Brand
  • Manufacturer Part #40020VBF53
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$0.00

RBC Bearing 40020VBF53 Specifications

  • Bearing Material:
    52100 Bearing Quality Steel
  • Bore Diameter:
    0.3750 in
  • Bore Type:
    Round
  • Cage Material:
    No Cage
  • Closure Type:
    Open
  • Dynamic Load Capacity:
    200 lbf
  • Finish/Coating:
    Steel
  • Inner Ring Width:
    1.1250 in
  • Internal Clearance:
    C0
  • Manufacturer UPC Number:
    637400409609
  • Maximum Operating Temperature:
    300ºF
  • Maximum RPM:
    1200 rpm
  • Operating Temperature Range:
    Maximum of +300°F
  • Outer Ring Width:
    0.3750 in
  • Outside Diameter Design:
    Straight
  • Outside Diameter:
    1.1250 in
  • Overall Width:
    0.3750 in
  • Precision Rating:
    Not Rated/Unground
  • Series:
    400
  • Snap Ring Included:
    Without Snap Ring
  • Weight:
    0.75 lbs
