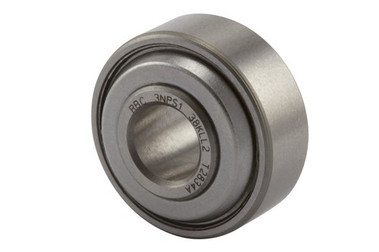

RBC Bearing 38KLL2

  • SKUOB59GC
  • Brand
  • Manufacturer Part #38KLL2
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$176.54

RBC Bearing 38KLL2 Specifications

  • Ball Material:
    Steel
  • Bearing Type:
    Radial
  • Bore Type:
    Round Bore
  • Cage Material:
    Steel
  • Cage Type:
    Metal
  • Capacity:
    Standard Capacity
  • Contact Angle:
    0°
  • Dynamic Load Rating:
    830 lbf
  • EAN or UPC:
    637400593414
  • Enclosure:
    Double Sealed
  • Fillet Radius:
    0.012 in
  • I.D.:
    8 mm
  • icNumber:
    7701354
  • Inch/Metric:
    Metric Bore
  • Inner Ring Width:
    0.497 in
  • Limiting Speed - Grease:
    20020 rpm
  • Limiting Speed - Oil:
    23360 rpm
  • Locking Device:
    No Locking Device
  • Lubricant:
    Polyurea Base
  • Material:
    Steel
  • No. in Set:
    Single Bearing
  • O.D. Type:
    Straight
  • O.D.:
    22 mm
  • Origin:
    Wide Inner Ring
  • Outer Ring Width:
    8 mm
  • Precision Level:
    Standard (ABEC 1)
  • Precision:
    Standard
  • Preload Level:
    None
  • Radial Internal Clearance Specification:
    Normal Clearance
  • Radial Internal Clearance:
    Normal
  • Rows of Balls:
    Single
  • Seal Material:
    Rubber
  • Seal O.D.:
    0.734 mm
  • Seal Protection Width:
    0.44 in
  • Seal Type:
    Labyrinth Seals
  • Snap Ring:
    No Snap Ring
  • Static Load Rating [MAX]:
    305 lbf
  • Temperature Range [MAX]:
    275 ?F
  • Temperature Range [MIN]:
    -30 ?F
  • Weight:
    0.04 LB
  • Width:
    12.6238 mm
