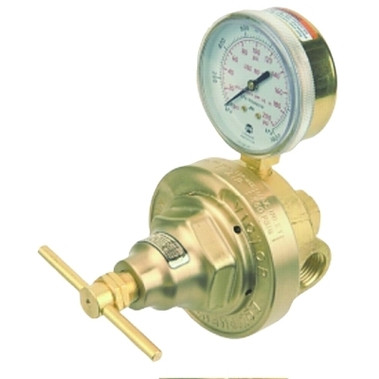

Victor Professional Line L 700 High Flow Line Regulator, L701A-750, Extra HD, Acetylene, CGA-750, 15 psig (1 EA / EA)

  • SKU341-0780-1201
  • Brand
  • Manufacturer Part #0780-1201
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$813.46

Victor Professional Line L 700 High Flow Line Regulator, L701A-750, Extra HD, Acetylene, CGA-750, 15 psig (1 EA / EA) Specifications

  • Applications:
    Automotive; Construction; Demolition; Medical; Metal Art; Mining; Ranching; Scrap; Shipbuilding; Testing
  • Body Material:
    Brass
  • Case Material:
    Brass
  • Depth [Nom]:
    6 in
  • Diaphragm Material:
    Fabric-Reinforced Neoprene
  • Diaphragm Size:
    3-1/4 in
  • Flow Range:
    2 to 15 psig
  • Gas Type:
    Acetylene
  • Gauge Size:
    2-1/2 in
  • Height [Nom]:
    7 in
  • Inlet Connection:
    CGA-750; 3/4 in NPT (F)
  • Inlet Pressure [Max]:
    350 psig
  • Inlet Size:
    3/4 in
  • Outlet Connection:
    3/4 in NPT (F)
  • Outlet Pressure [Max]:
    15 psig
  • Outlet Pressure [Min]:
    2 psig
  • Outlet Size:
    3/4 in
  • Series:
    L700
  • Style:
    L710A-750 Model
  • Type:
    High Flow Line Regulator
  • Used With:
    Gas Cutting Equipment
  • Width [Nom]:
    4 in

 Help us improve our product information

Description

Forged brass body and housing cap
Stem type seat mechanism
Delrin cap bushing for smooth adjustments
Designed for gas distribution system (pipeline)
Not for use on cylinders
