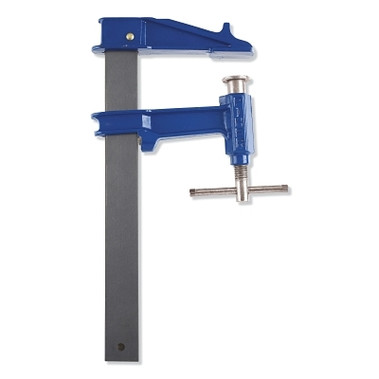

Piher Piston F Bar Clamp, 20 cm Opening, 12 cm Throat Depth, 8 in Capacity (5 EA / PK)

  • SKU848-04020
  • Brand
  • Manufacturer Part #4020
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$215.65

Piher Piston F Bar Clamp, 20 cm Opening, 12 cm Throat Depth, 8 in Capacity (5 EA / PK) Specifications

  • Bar Thickness:
    8 mm
  • Bar Width:
    35 mm
  • Body Material:
    Epoxy Paint Coated Cast Iron; Steel
  • Handle Type:
    Steel Bar
  • Opening Size [Max]:
    20 cm
  • Spindle Diam:
    1.1 in
  • Throat Depth [Nom]:
    12 cm
  • Wt.:
    4.0 lb

 Help us improve our product information

Description

Piston Clamp using a double threaded screw which doubles the pressure and speed and allows work on uneven surfaces, tubes
Non-slip brake preventing the tool from loosening or losing grip in jobs involving bangs or vibrations
Rolled spring steel bar which gives maximum pressure held throughout the whole job
Nodular cast iron jaws
