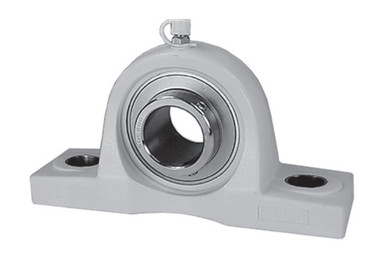

NSK Bearing SUCTP206-20

Images may not be exact. Please refer to Part # and Description.

NSK

NSK Bearing SUCTP206-20

MFG Part #
SUCTP206-20
SKU#
XA30JN

Specifications

Base to Bore Centerline1.6875 in
Base Width1.8100 in
Bolt Center-to-Center Length4.6900 in
Bolt Size0.5500 in
Bore Diameter1.2500 in
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Frequently Ordered Together

Specs

Base to Bore Centerline:
1.6875 in
Base Width:
1.8100 in
Bolt Center-to-Center Length:
4.6900 in
Bolt Size:
0.5500 in
Bore Diameter:
1.2500 in
Bore Type:
Round
Duty Type:
Standard Duty
End Type:
Open
Expansion Type:
Non-Expansion Bearing (Fixed)
Housing Material:
PBT White Thermoplastic
Insert Bearing Type:
Ball Bearing
Locking Device:
Set Screw
Lubricant:
Mobile FM222 USDA H1
Lubrication Type:
Lubrication Fitting
Manufacturer UPC Number:
29176873966
Mounting:
Two-Bolt Base
Operating Temperature Range:
-10 to 210°F
Overall Height:
3.2700 in
Overall Length:
6.3800 in
Replacement Bearing:
SUC206-20
Seal Material:
AISI 302 Stainless Steel, Rubber
Weight:
0.7 kg

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
