NSK Bearing SAF520

  • SKUDA92AT
  • Brand
  • Manufacturer Part #SAF520
  • Available to Order

    Expected to Arrive ***

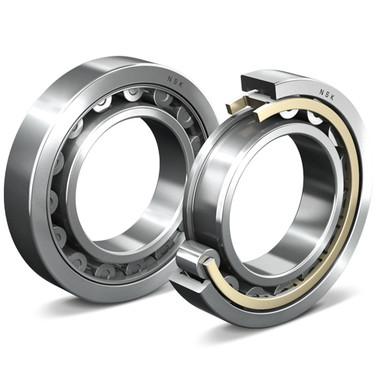

 Images may not be exact. Please refer to Part # and Description.

$6,697.02

NSK Bearing SAF520 Specifications

  • Base Height:
    1 3/4 in
  • Base Width:
    4 3/8 in
  • Bearing Design:
    Non-Expansion
  • Bolt Hole Length:
    180 mm
  • Bolt Hole Spacing Range [MAX]:
    13 1/8 in
  • Bolt Hole Spacing Range [MIN]:
    11 5/8 in
  • Bolt Holes:
    2
  • Bolt Size:
    56 mm
  • Center Line to Base Dimension:
    4 1/2 in
  • EAN or UPC:
    29176427602
  • End Type:
    Open End
  • Housing Height:
    8 3/4 in
  • Housing Length:
    15 1/4 in
  • Housing Material:
    Cast Iron
  • Housing Width:
    3 7/16 in
  • Locking Device:
    Locknut Locking
  • Mounted Unit Series:
    500 Series
  • Overall Width:
    6 1/8 in
  • Seal Type:
    Labyrinth Seals
  • Shaft Dia.:
    3 7/16 in
  • Weight:
    60.78 LB

 Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
