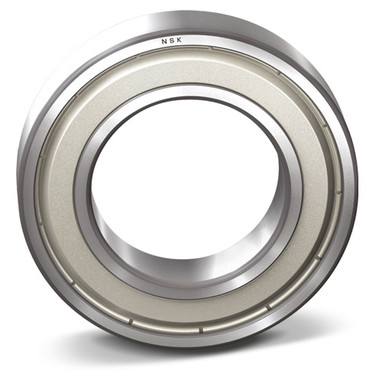

NSK Bearing R4BZZ
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
NSK Bearing R4BZZ Specifications
-
Ball Material:Steel
-
Bearing Type:Radial
-
Bore Type:Round Bore
-
Cage Material:Pressed Steel
-
Cage Type:Metal
-
Capacity:Standard Capacity
-
Contact Angle:0°
-
Corner Radius [MIN]:0.012 in
-
Dynamic Load Rating:360 lbf
-
EAN or UPC:29176020063
-
Enclosure:Double Shielded
-
I.D.:1/4 in
-
Inch/Metric:Inch Bore
-
Limiting Speed - Grease:38000 rpm
-
Limiting Speed - Oil:N/A
-
Locking Device:No Locking Device
-
Material:Steel
-
O.D. Type:Straight
-
O.D.:5/8 in
-
Outer Ring Width:0.196 in
-
Precision Level:Standard (ABEC 1)
-
Precision:Standard
-
Preload Level:None
-
Radial Internal Clearance Specification:Normal Clearance
-
Radial Internal Clearance:Normal
-
Rows of Balls:Single
-
Seal Material:Metal
-
Seal Type:Non-Contact Seals
-
Snap Ring:No Snap Ring
-
Static Load Rating [MAX]:149 lbf
-
Weight:0.015 LB
-
Width:0.196 in
Help us improve our product information
Description
Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
