NSK

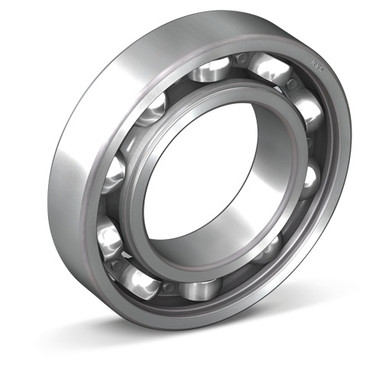

NSK Bearing R4B

MFG Part #
R4B
SKU#
NA89TL

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialPressed Steel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Pressed Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Contact Angle:
0°
Corner Radius [MIN]:
0.012 in
Dynamic Load Rating:
360 lbf
EAN or UPC:
29176020001
Enclosure:
Open
I.D.:
1/4 in
Inch/Metric:
Inch Bore
Limiting Speed - Grease:
38000 rpm
Limiting Speed - Oil:
45000 rpm
Locking Device:
No Locking Device
Material:
Steel
O.D. Type:
Straight
O.D.:
5/8 in
Outer Ring Width:
0.196 in
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Normal Clearance
Radial Internal Clearance:
Normal
Rows of Balls:
Single
Seal Material:
None
Seal Type:
Unsealed
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
149 lbf
Weight:
0.02 LB
Width:
0.196 in

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$21.88
