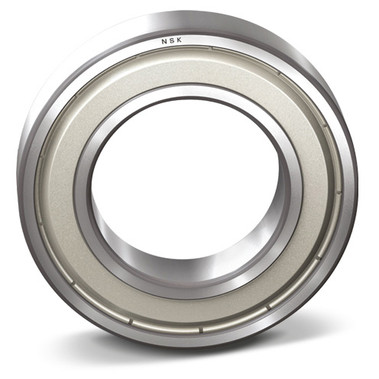

NSK Bearing R12ZZC3

SKUID67QL
BrandNSK
Manufacturer Part #R12ZZC3
Available to Order

Expected to Arrive ***

Images may not be exact. Please refer to Part # and Description.

Quantity:

$32.23

NSK Bearing R12ZZC3 Specifications

Bore Diameter:

0.7500 in
Bore Type:

Round
Cage Material:

Steel
Closure Type:

Double Shielded
Dynamic Load Capacity:

2110 lb
Fillet Radius:

0.031 in
Finish/Coating:

Uncoated
Internal Clearance:

C0
Maximum RPM:

20000 RPM
Operating Temperature Range:

-10 to +110°C
Outer Ring Width:

7/16 in
Outside Diameter:

1.6250 in
Overall Width:

0.4375 in
Precision Rating:

Not Rated
Series:

R
Snap Ring Included:

Without Snap Ring
Static Load Capacity:

1120 lbs
Thrust Application Warning:

This product can not be used in Thrust Applications
Weight:

0.13 lbs

Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
