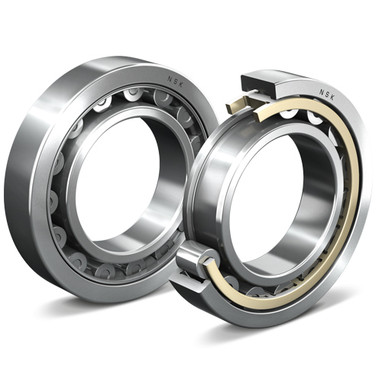

NSK Bearing NU412W

Specs

Bearing Design:

Removable Inner Ring– Straight

Bore Type:

Round Bore, Metric Type

Cage Material:

Pressed Steel

Capacity:

Standard Capacity

Dynamic Load Rating:

167000 N

EAN or UPC:

29176051319

Enclosure:

Open

End Type:

Open End

I.D.:

60 mm

Limiting Speed - Grease:

4300 rpm

Limiting Speed - Oil:

5300 rpm

O.D.:

150 mm

Oil Hole:

w/o Oil Hole

Outer Ring Width:

35 mm

Precision Ground:

Yes

Radial Internal Clearance Specification:

Normal Clearance

Radial Internal Clearance:

Normal

Static Load Rating [MAX]:

168000 N

Tolerance:

Iso Class 0 (RBEC 1)

Weight:

6.832 LB

Width:

35 mm
