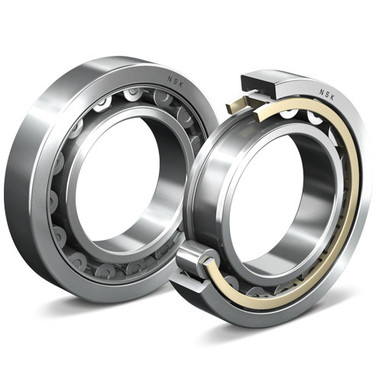

NSK Bearing NU218W

SKUZI19IB
BrandNSK
Manufacturer Part #NU218W
Available to Order

Expected to Arrive ***

Images may not be exact. Please refer to Part # and Description.

Quantity:

$536.61

NSK Bearing NU218W Specifications

Bearing Design:

Removable Inner Ring Straight
Bore Type:

Round Bore, Metric Type
Cage Material:

Pressed Steel
Capacity:

Standard Capacity
Dynamic Load Rating:

152000 N
EAN or UPC:

29176069000
Enclosure:

Open
End Type:

Open End
I.D.:

90 mm
Limiting Speed - Grease:

4000 rpm
Limiting Speed - Oil:

4800 rpm
O.D.:

160 mm
Oil Hole:

w/o Oil Hole
Outer Ring Width:

30 mm
Precision Ground:

Yes
Radial Internal Clearance Specification:

Normal Clearance
Radial Internal Clearance:

Normal
Static Load Rating [MAX]:

178000 N
Tolerance:

Iso Class 0 (RBEC 1)
Weight:

5.179 LB
Width:

30 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
