NSK

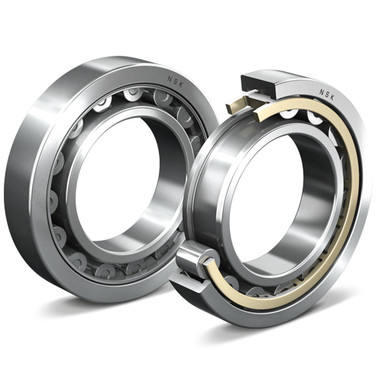

NSK Bearing N312W

MFG Part #
N312W
SKU#
XN44AT

Specifications

Bearing DesignRemovable Outer Ring– Straight
Bore TypeRound Bore, Metric Type
Cage MaterialPressed Steel
CapacityStandard Capacity
Dynamic Load Rating124000 N
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bearing Design:
Removable Outer Ring– Straight
Bore Type:
Round Bore, Metric Type
Cage Material:
Pressed Steel
Capacity:
Standard Capacity
Dynamic Load Rating:
124000 N
EAN or UPC:
29176032851
Enclosure:
Open
End Type:
Open End
I.D.:
60 mm
Limiting Speed - Grease:
4800 rpm
Limiting Speed - Oil:
5600 rpm
O.D.:
130 mm
Oil Hole:
w/o Oil Hole
Outer Ring Width:
31 mm
Precision Ground:
Yes
Radial Internal Clearance Specification:
Normal Clearance
Radial Internal Clearance:
Normal
Static Load Rating [MAX]:
126000 N
Tolerance:
Iso Class 0 (RBEC 1)
Weight:
3.879 LB
Width:
31 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$299.36
