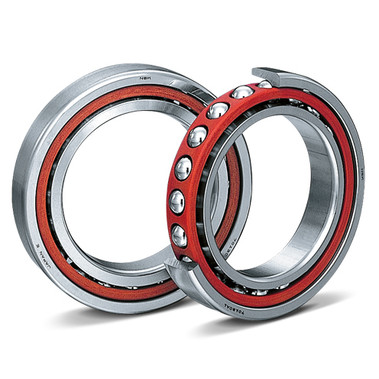

NSK Bearing 7924CTRDULP4Y Precision Ball Bearing

Specs

Bore:

4.724 Inch / 120 Millimeter

Brand:

NSK

Cage Material:

Phenolic

Category:

Precision Ball Bearings

Contact Angle:

15 Degree

EAN:

29176625312

Enclosure:

Open

Flush Ground:

Yes

Harmonized Tariff Code:

8482.10.50.28

Inch - Metric:

Metric

Keyword String:

Angular Contact Ball

Long Description:

120MM Bore; 165MM Outside Diameter; 44MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 2 (1 Pair) Bearings; 15 Degree Contact Angle; Phenolic Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing

Manufacturer Item Number:

7924CTRDULP4Y

Manufacturer Name:

NSK

Manufacturer URL:

http://www.nskamericas.com

Material - Ball:

Steel

Mounting Arrangement:

Duplex-Universal

Noun:

Bearing

Number of Bearings:

2 (1 Pair)

Other Features:

Single Row / Angular Contact / Bore and OD are Exclusive All Others are ISO 4

Outside Diameter:

6.496 Inch / 165 Millimeter

Precision Class:

ABEC 7 / ISO P4

Preload:

Light

Raceway Style:

1 Rib Outer Ring

Rolling Element:

Ball Bearing

UNSPSC:

31171531

Weight / Kilogram:

0

Weight / LBS:

5.048

Width:

1.732 Inch / 44 Millimeter
