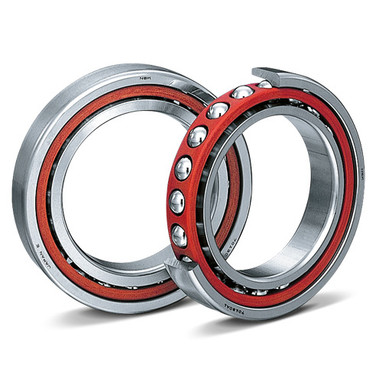

Images may not be exact. Please refer to Part # and Description.
Specifications
| Ball Screw Application | Not for Ball Screws |
|---|---|
| Bore Diameter | 75 mm |
| Cage Material | Synthetic Resin |
| Closure Type | Single Seal |
| Contact Angle | 25° |
Need Some Help?
Get real service from real people, that know the products!
Monday - Friday
5:00am - 5:00pm PST
Frequently Ordered Together
Specs
- Ball Screw Application:
- Not for Ball Screws
- Bore Diameter:
- 75 mm
- Cage Material:
- Synthetic Resin
- Closure Type:
- Single Seal
- Contact Angle:
- 25°
- Fillet Radius:
- 1.5 mm
- Finish/Coating:
- Uncoated
- Internal Clearance:
- C0
- Maximum RPM:
- 7500 RPM
- Outer Ring Width:
- 25 mm
- Outside Diameter:
- 130 mm
- Overall Width:
- 25 mm
- Precision Rating:
- ABEC 7 (ISO Class 4)
- Radial Dynamic Load Capacity:
- 7750 kgf
- Radial Static Load Capacity:
- 6550 kgf
- Series:
- 72
Description
Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
