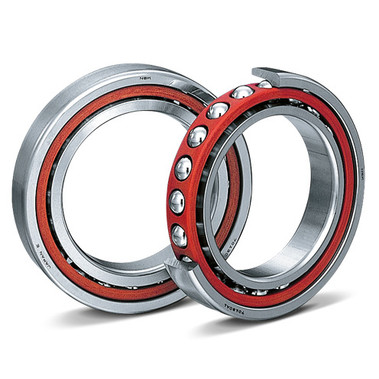

NSK Bearing 7004CTRDUMP4Y Precision Ball Bearing

  • SKUQG42ZW
  • Brand
  • Manufacturer Part #7004CTRDUMP4Y
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$508.49

NSK Bearing 7004CTRDUMP4Y Precision Ball Bearing Specifications

  • Bore:
    0.787 Inch / 20 Millimeter
  • Brand:
    NSK
  • Cage Material:
    Phenolic
  • Category:
    Precision Ball Bearings
  • Contact Angle:
    15 Degree
  • EAN:
    29176580512
  • Enclosure:
    Open
  • Flush Ground:
    Yes
  • Harmonized Tariff Code:
    8482.10.50.28
  • Inch - Metric:
    Metric
  • Keyword String:
    Angular Contact Ball
  • Long Description:
    20MM Bore; 42MM Outside Diameter; 24MM Width; Open Enclosure; ABEC 7 / ISO P4 Precision; Steel Ball Material; 2 (1 Pair) Bearings; 15 Degree Contact Angle; Phenolic Cage Material; 1 Rib Outer Ring Raceway Type; Ball Bearing
  • Manufacturer Item Number:
    7004CTRDUMP4Y
  • Manufacturer Name:
    NSK
  • Manufacturer URL:
    http://www.nskamericas.com
  • Material - Ball:
    Steel
  • Mounting Arrangement:
    Duplex-Universal
  • Noun:
    Bearing
  • Number of Bearings:
    2 (1 Pair)
  • Other Features:
    Single Row / Angular Contact / Bore and OD are Exclusive All Others are ISO 4
  • Outside Diameter:
    1.654 Inch / 42 Millimeter
  • Precision Class:
    ABEC 7 / ISO P4
  • Preload:
    Medium
  • Raceway Style:
    1 Rib Outer Ring
  • Rolling Element:
    Ball Bearing
  • UNSPSC:
    31171531
  • Weight / Kilogram:
    0
  • Weight / LBS:
    0.287
  • Width:
    0.945 Inch / 24 Millimeter

 Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
