NSK

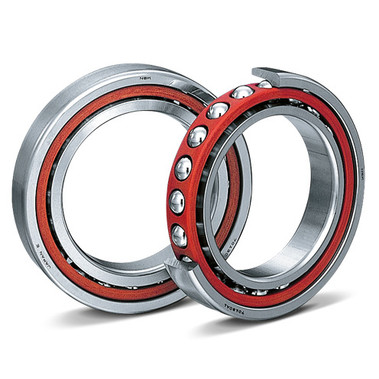

NSK Bearing 7003CTRDUMP4Y

MFG Part #
7003CTRDUMP4Y
SKU#
RJ49RB

Specifications

Ball Screw ApplicationNot for Ball Screws
Bore Diameter17 mm
Cage MaterialSynthetic Resin
Closure TypeOpen
Contact Angle15°
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Ball Screw Application:
Not for Ball Screws
Bore Diameter:
17 mm
Cage Material:
Synthetic Resin
Closure Type:
Open
Contact Angle:
15°
Fillet Radius:
0.3 mm
Finish/Coating:
Uncoated
Internal Clearance:
C3
Maximum RPM:
43000 RPM
Outer Ring Width:
10 mm
Outside Diameter:
35 mm
Overall Width:
10 mm
Precision Rating:
ABEC 7 (ISO Class 4)
Radial Dynamic Load Capacity:
675 kgf
Radial Static Load Capacity:
390 kgf
Series:
70

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$536.30
