NSK

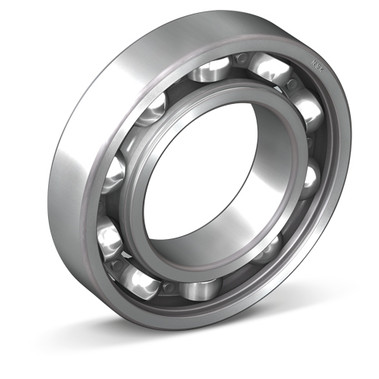

NSK Bearing 6976M

MFG Part #
6976M
SKU#
YW32UH

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialMachined Brass
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Machined Brass
Cage Type:
Metal
Capacity:
Standard Capacity
Contact Angle:
0°
Corner Radius [MIN]:
4 mm
Dynamic Load Rating:
325000 N
EAN or UPC:
29176075162
Enclosure:
Open
I.D.:
380 mm
Inch/Metric:
Metric Bore
Limiting Speed - Grease:
950 rpm
Limiting Speed - Oil:
1200 rpm
Locking Device:
No Locking Device
Material:
Steel
O.D. Type:
Straight
O.D.:
520 mm
Outer Ring Width:
65 mm
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Normal Clearance
Radial Internal Clearance:
Normal
Rows of Balls:
Single
Seal Material:
None
Seal Type:
Unsealed
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
510000 N
Weight:
90.364 LB
Width:
65 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$13,256.17
