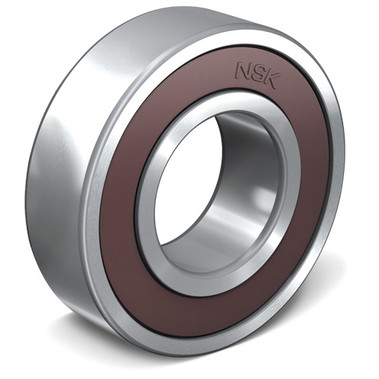

NSK Bearing 63204DDU

SKUMC87NZ
BrandNSK
Manufacturer Part #63204DDU
Available to Order

Expected to Arrive ***

Images may not be exact. Please refer to Part # and Description.

Quantity:

$122.96

NSK Bearing 63204DDU Specifications

Ball Material:

Steel
Bearing Type:

Radial
Bore Type:

Round Bore
Cage Material:

Pressed Steel
Cage Type:

Metal
Capacity:

Standard Capacity
Contact Angle:

0°
Corner Radius [MIN]:

1 mm
Dynamic Load Rating:

12800 N
EAN or UPC:

29176017919
Enclosure:

Double Sealed
I.D.:

20 mm
Inch/Metric:

Metric Bore
Limiting Speed - Grease:

11000 rpm
Limiting Speed - Oil:

N/A
Locking Device:

No Locking Device
Material:

Steel
O.D. Type:

Straight
O.D.:

47 mm
Outer Ring Width:

13/16 in
Precision Level:

Standard (ABEC 1)
Precision:

Standard
Preload Level:

None
Radial Internal Clearance Specification:

Normal Clearance
Radial Internal Clearance:

Normal
Rows of Balls:

Single
Seal Material:

Rubber
Seal Type:

Contact Seals
Snap Ring:

No Snap Ring
Static Load Rating [MAX]:

6600 N
Weight:

0.22 LB
Width:

20.6375 mm

Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
