NSK

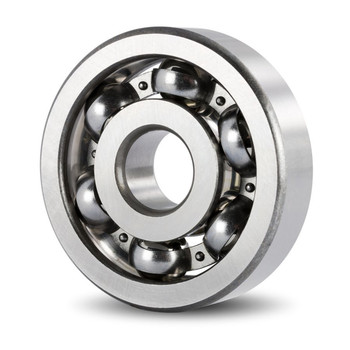

NSK Bearing 6304NR

MFG Part #
6304NR
SKU#
BI85DI

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialPressed Steel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Pressed Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Contact Angle:
0°
Corner Radius [MIN]:
1.1 mm
Dynamic Load Rating:
3574 lbf
EAN or UPC:
29176034978
Enclosure:
Open
I.D.:
20 mm
icNumber:
7696873
Inch/Metric:
Metric Bore
Limiting Speed - Grease:
14000 rpm
Limiting Speed - Oil:
17000 rpm
Locking Device:
No Locking Device
Material:
Steel
O.D. Type:
Straight w/ Snap Ring
O.D.:
52 mm
Outer Ring Width:
15 mm
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Normal Clearance
Radial Internal Clearance:
Normal
Rows of Balls:
Single
Seal Material:
None
Seal Type:
Unsealed
Snap Ring:
With Snap Ring
Static Load Rating [MAX]:
1776 lbf
Weight:
0.32 LB
Width:
15 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$29.28
