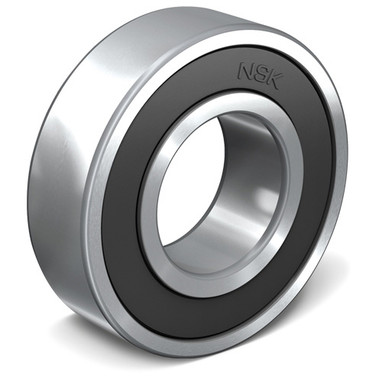

NSK Bearing 6207VV

  • SKUPP12KT
  • Brand
  • Manufacturer Part #6207VV
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$43.24

NSK Bearing 6207VV Specifications

  • Ball Material:
    Steel
  • Bearing Type:
    Radial
  • Bore Type:
    Round Bore
  • Cage Material:
    Pressed Steel
  • Cage Type:
    Metal
  • Capacity:
    Standard Capacity
  • Contact Angle:
    0°
  • Corner Radius [MIN]:
    1.1 mm
  • Dynamic Load Rating:
    5778 lbf
  • EAN or UPC:
    29176014666
  • Enclosure:
    Double Sealed
  • I.D.:
    35 mm
  • icNumber:
    7695877
  • Inch/Metric:
    Metric Bore
  • Limiting Speed - Grease:
    9500 rpm
  • Limiting Speed - Oil:
    N/A
  • Locking Device:
    No Locking Device
  • Material:
    Steel
  • O.D. Type:
    Straight
  • O.D.:
    72 mm
  • Outer Ring Width:
    17 mm
  • Precision Level:
    Standard (ABEC 1)
  • Precision:
    Standard
  • Preload Level:
    None
  • Radial Internal Clearance Specification:
    Normal Clearance
  • Radial Internal Clearance:
    Normal
  • Rows of Balls:
    Single
  • Seal Material:
    Rubber
  • Seal Type:
    Non-Contact Seals
  • Snap Ring:
    No Snap Ring
  • Static Load Rating [MAX]:
    3440 lbf
  • Weight:
    0.83 LB
  • Width:
    17 mm

 Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
