NSK Bearing 6205VVC3

Images may not be exact. Please refer to Part # and Description.

NSK

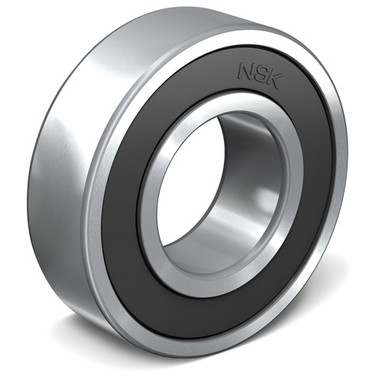

NSK Bearing 6205VVC3

MFG Part #
6205VVC3
SKU#
AX11QN

Specifications

Ball MaterialSteel
Bearing TypeRadial
Bore TypeRound Bore
Cage MaterialPressed Steel
Cage TypeMetal
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Frequently Ordered Together

Specs

Ball Material:
Steel
Bearing Type:
Radial
Bore Type:
Round Bore
Cage Material:
Pressed Steel
Cage Type:
Metal
Capacity:
Standard Capacity
Contact Angle:
0°
Corner Radius [MIN]:
1 mm
Dynamic Load Rating:
3147 lbf
EAN or UPC:
29176014369
Enclosure:
Double Sealed
I.D.:
25 mm
icNumber:
7695910
Inch/Metric:
Metric Bore
Inner Ring Width:
15 mm
Limiting Speed - Grease:
13000 rpm
Limiting Speed - Oil:
N/A
Locking Device:
No Locking Device
Lubricant:
Mul-Temp SRL
Material:
Steel
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
52 mm
Outer Ring Width:
15 mm
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Greater Than Normal Clearance
Radial Internal Clearance:
C3
Rows of Balls:
Single
Seal Material:
Rubber
Seal Type:
Non-Contact Seals
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
1770 lbf
Weight:
0.3 LB
Width:
15 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
