NSK

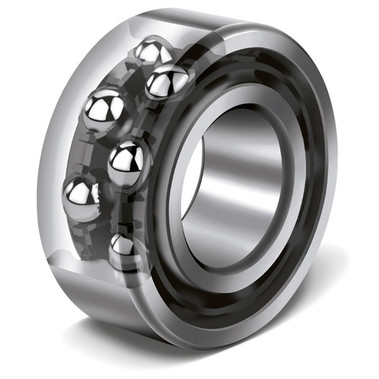

NSK Bearing 5311TNC3

MFG Part #
5311TNC3
SKU#
PS96XP

Specifications

Ball MaterialSteel
Bearing TypeAngular Contact
Bore TypeRound Bore
Cage MaterialPolyamide
Cage TypePlastic
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Ball Material:
Steel
Bearing Type:
Angular Contact
Bore Type:
Round Bore
Cage Material:
Polyamide
Cage Type:
Plastic
Capacity:
Standard Capacity
Contact Angle:
None
Dynamic Load Rating:
22900 lbf
EAN or UPC:
29176074165
Enclosure:
Open
I.D.:
55 mm
Inch/Metric:
Metric Bore
Limiting Speed - Grease:
3800 rpm
Limiting Speed - Oil:
5000 rpm
Locking Device:
No Locking Device
Lubricant:
Oil Preservative
Material:
Steel
No. in Set:
Single Bearing
O.D. Type:
Straight
O.D.:
120 mm
Outer Ring Width:
1.937 in
Precision Level:
Standard (ABEC 1)
Precision:
Standard
Preload Level:
None
Radial Internal Clearance Specification:
Greater Than Normal Clearance
Radial Internal Clearance:
C3
Rows of Balls:
Double
Seal Material:
None
Seal Type:
Unsealed
Shaft Shoulder Diameter [MIN]:
0.078 in
Snap Ring:
No Snap Ring
Static Load Rating [MAX]:
15300 lbf
Weight:
4.65 LB
Width:
49.2125 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$226.30
