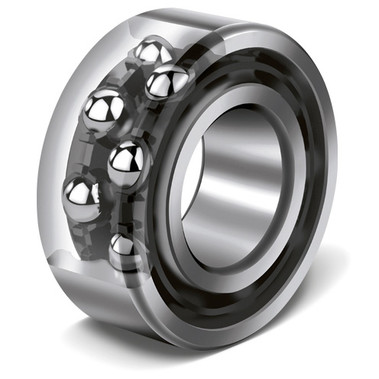

NSK Bearing 5306NRTNC3

SKUNP15TD
BrandNSK
Manufacturer Part #5306NRTNC3
Available to Order

Expected to Arrive ***

Images may not be exact. Please refer to Part # and Description.

Quantity:

$120.10

NSK Bearing 5306NRTNC3 Specifications

Bore Diameter:

30 mm
Cage Material:

Synthetic Resin
Closure Type:

Open
Contact Angle:

25°
Fillet Radius:

1 mm
Finish/Coating:

Uncoated
Internal Clearance:

C3
Maximum RPM:

8500 RPM
Operating Temperature Range:

Maximum of +250°F
Outer Ring Width:

30.2 mm
Outside Diameter:

72 mm
Overall Width:

1.1875 in
Precision Rating:

ABEC 1 (ISO Class Normal)
Radial Dynamic Load Capacity:

4150 kgf
Radial Static Load Capacity:

2870 kgf
Series:

53
Weight:

1.19 lbs

Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
