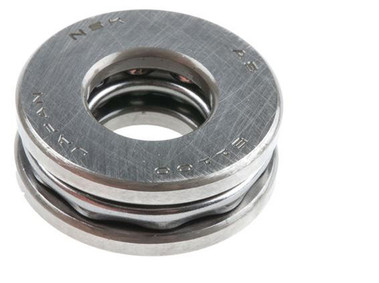

NSK Bearing 52314

SKUPE61CQ
BrandNSK
Manufacturer Part #52314
Available to Order

Expected to Arrive ***

Images may not be exact. Please refer to Part # and Description.

Quantity:

$902.53

NSK Bearing 52314 Specifications

Bore Diameter:

55 mm
Cage Material:

Steel Cage
Dynamic Load Capacity:

31000 lbf
Fillet Radius:

1.1 mm
Maximum RPM:

2000 rpm
Operating Temperature Range:

Maximum of +120°C
Outside Diameter Design:

Straight
Outside Diameter:

125 mm
Overall Width:

72 mm
Precision Rating:

ABEC1, P0
Race Type:

Flat
Separable or Banded:

Separable
Series:

52300
Static Load Capacity:

70500 lbf
Thrust Bearing Type:

Double-Direction
Weight:

8.60 lbs

Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
