NSK

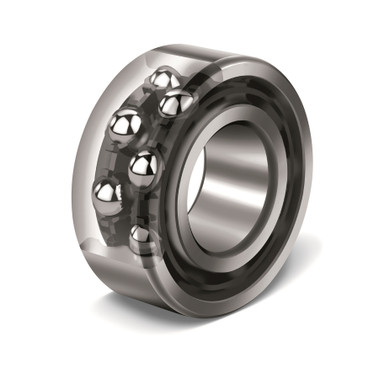

NSK Bearing 5209NRTNC3

MFG Part #
5209NRTNC3
SKU#
PM88VZ

Specifications

Bore Diameter45 mm
Bore TypeRound
Cage MaterialPolyamide Cage
Closure TypeOpen
Contact Angle25°
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bore Diameter:
45 mm
Bore Type:
Round
Cage Material:
Polyamide Cage
Closure Type:
Open
Contact Angle:
25°
Fillet Radius:
1.1 mm
Finish/Coating:
Uncoated
Internal Clearance:
C3
Maximum RPM:
5400 rpm
Maximum Temperature:
120°C
Outside Diameter:
85 mm
Overall Width:
1.1875 in
Precision Rating:
ABEC1, P0
Radial Dynamic Load Capacity:
47500 N
Series:
5200
Snap Ring Included:
With Snap Ring
Weight:
1.37 lbs

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$126.22
