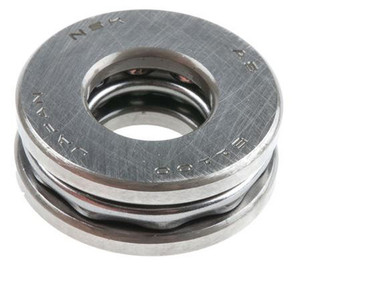

NSK Bearing 51144
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
NSK Bearing 51144 Specifications
-
Bore Diameter:220 mm
-
Cage Material:Steel Cage
-
Dynamic Load Capacity:40000 lbf
-
Fillet Radius:1.1 mm
-
Maximum RPM:1500 rpm
-
Outside Diameter Design:Straight
-
Outside Diameter:270 mm
-
Overall Width:37 mm
-
Precision Rating:ABEC1, P0
-
Race Type:Flat
-
Separable or Banded:Separable
-
Series:51100
-
Static Load Capacity:166000 lbf
-
Thrust Bearing Type:Single-Direction
-
Weight:10.14 lbs
Help us improve our product information
Description
Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
