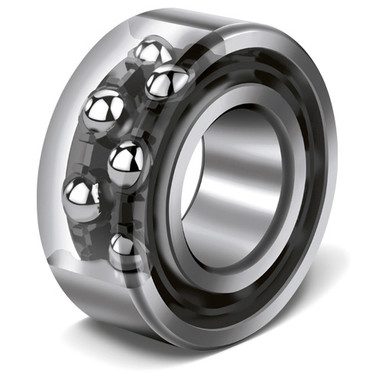

NSK Bearing 3309JC3 Angular Contact Ball Bearing

  • SKUDW18GN
  • Brand
  • Manufacturer Part #3309JC3
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$197.87

NSK Bearing 3309JC3 Angular Contact Ball Bearing Specifications

  • Bore:
    1.772 Inch / 45 Millimeter
  • Brand:
    NSK
  • Cage Material:
    Steel
  • Category:
    Angular Contact Ball Bearings
  • Contact Angle:
    32 Degree
  • EAN:
    29176072611
  • Enclosure:
    Open
  • Flush Ground:
    No
  • Harmonized Tariff Code:
    8482.10.50.28
  • Inch - Metric:
    Metric
  • Internal Clearance:
    C3-Loose
  • Keyword String:
    Angular Contact
  • Long Description:
    45MM Bore; 100MM Outside Diameter; 39.69MM Width; Open; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 1 / ISO P0; Yes Filling Slot; No Snap Ring; C3-Loose; Steel Cage; 32 Degree; 1 (Single)
  • Manufacturer Name:
    NSK
  • Manufacturer URL:
    http://www.nskamericas.com
  • Maximum Capacity / Filling Slot:
    Yes
  • Noun:
    Bearing
  • Number of Bearings:
    1 (Single)
  • Number of Rows of Balls:
    Double Row
  • Outside Diameter:
    3.937 Inch / 100 Millimeter
  • Precision Class:
    ABEC 1 / ISO P0
  • Rolling Element:
    Ball Bearing
  • Snap Ring:
    No
  • UNSPSC:
    31171531
  • Weight / Kilogram:
    1.41
  • Weight / LBS:
    3.08
  • Width:
    1.563 Inch / 39.69 Millimeter

 Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
