NSK

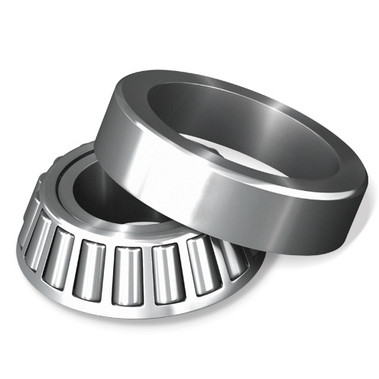

NSK Bearing 32934

MFG Part #
32934
SKU#
BL47DL

Specifications

Cage MaterialPressed Steel
CapacityStandard Capacity
Cone Corner Radius2 1/2 mm
Cone Width36 mm
Constant e0.36
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Cage Material:
Pressed Steel
Capacity:
Standard Capacity
Cone Corner Radius:
2 1/2 mm
Cone Width:
36 mm
Constant e:
0.36
Cup Corner Radius:
2 mm
Cup Width:
31 mm
Dynamic Load Rating:
258000 N
EAN or UPC:
29176032073
Effective Load Center:
41.6 mm
Housing Fillet Radius [MAX]:
2 mm
Housing Shoulder Diameter [MAX]:
220 mm
Housing Shoulder Diameter [MIN]:
216 mm
I.D.:
170 mm
Limiting Speed - Grease:
1300 rpm
Limiting Speed - Oil:
1800 rpm
O.D.:
230 mm
Shaft Fillet Radius [MAX]:
2 mm
Static Load Rating [MAX]:
485000 N
Tolerance:
Class 2 (Standard)
Weight:
9.477 LB
Width:
38 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$1,250.82
