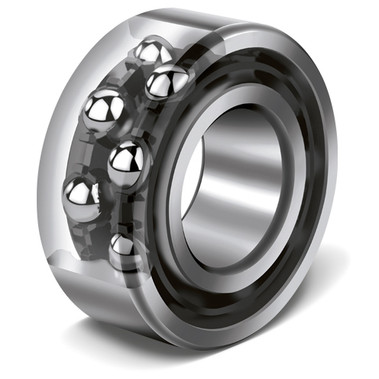

NSK Bearing 3209J Angular Contact Ball Bearing

  • SKUIH17BF
  • Brand
  • Manufacturer Part #3209J
  • Available to Order

    Expected to Arrive ***


 Images may not be exact. Please refer to Part # and Description.

$125.13

NSK Bearing 3209J Angular Contact Ball Bearing Specifications

  • Bore:
    1.772 Inch / 45 Millimeter
  • Brand:
    NSK
  • Cage Material:
    Steel
  • Category:
    Angular Contact Ball Bearings
  • Contact Angle:
    32 Degree
  • EAN:
    29176061752
  • Enclosure:
    Open
  • Flush Ground:
    No
  • Harmonized Tariff Code:
    8482.10.50.28
  • Inch - Metric:
    Metric
  • Internal Clearance:
    C0-Medium
  • Keyword String:
    Angular Contact
  • Long Description:
    45MM Bore; 85MM Outside Diameter; 30.2MM Width; Open; No Flush Ground; Ball Bearing; Double Row of Balls; ABEC 1 / ISO P0; Yes Filling Slot; No Snap Ring; C0-Medium; Steel Cage; 32 Degree; 1 (Single)
  • Manufacturer Item Number:
    3209J
  • Manufacturer Name:
    NSK
  • Manufacturer URL:
    http://www.nskamericas.com
  • Maximum Capacity / Filling Slot:
    Yes
  • Noun:
    Bearing
  • Number of Bearings:
    1 (Single)
  • Number of Rows of Balls:
    Double Row
  • Outside Diameter:
    3.346 Inch / 85 Millimeter
  • Precision Class:
    ABEC 1 / ISO P0
  • Rolling Element:
    Ball Bearing
  • Snap Ring:
    No
  • UNSPSC:
    31171531
  • Weight / Kilogram:
    0.678
  • Weight / LBS:
    1.56
  • Width:
    1.189 Inch / 30.2 Millimeter

 Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
