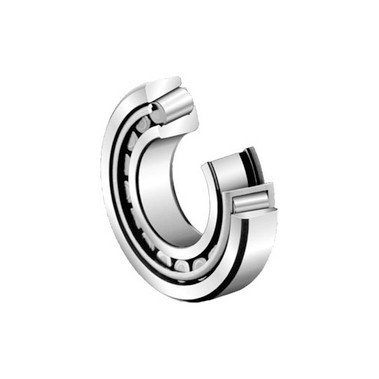

NSK Bearing 30326

Specs

Cage Material:

Pressed Steel

Capacity:

Standard Capacity

Cone Corner Radius:

5 mm

Cone Width:

58 mm

Constant e:

0.36

Cup Corner Radius:

4 mm

Cup Width:

49 mm

Dynamic Load Rating:

545000 N

EAN or UPC:

29176032042

Effective Load Center:

53.9 mm

Housing Fillet Radius [MAX]:

3 mm

Housing Shoulder Diameter [MAX]:

262 mm

Housing Shoulder Diameter [MIN]:

239 mm

I.D.:

130 mm

Limiting Speed - Grease:

1300 rpm

Limiting Speed - Oil:

1800 rpm

O.D.:

280 mm

Shaft Fillet Radius [MAX]:

3 mm

Static Load Rating [MAX]:

675000 N

Tolerance:

Class 2 (Standard)

Weight:

36.146 LB

Width:

63 3/4 mm
