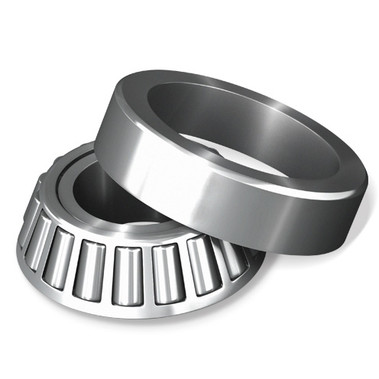

NSK Bearing 30230
Images may not be exact. Please refer to Part # and Description.
Need Some Help?
Get real service from real
people, that know the products!
NSK Bearing 30230 Specifications
-
Cage Material:Pressed Steel
-
Capacity:Standard Capacity
-
Cone Corner Radius:4 mm
-
Cone Width:45 mm
-
Constant e:0.43
-
Cup Corner Radius:3 mm
-
Cup Width:38 mm
-
Dynamic Load Rating:435000 N
-
EAN or UPC:29176020193
-
Effective Load Center:50.2 mm
-
Housing Fillet Radius [MAX]:2 1/2 mm
-
Housing Shoulder Diameter [MAX]:256 mm
-
Housing Shoulder Diameter [MIN]:238 mm
-
I.D.:150 mm
-
Limiting Speed - Grease:1300 rpm
-
Limiting Speed - Oil:1700 rpm
-
O.D.:270 mm
-
Shaft Fillet Radius [MAX]:2 1/2 mm
-
Static Load Rating [MAX]:570000 N
-
Tolerance:Class 2 (Standard)
-
Weight:23.142 LB
-
Width:49 mm
Help us improve our product information
Description
Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
