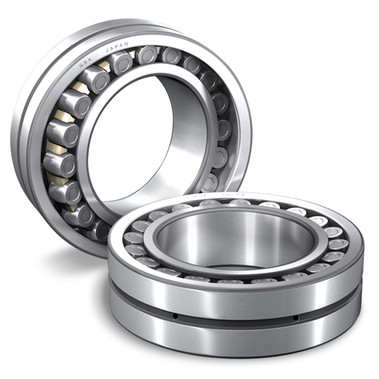

NSK Bearing 23064CAMC3P55W507

SKUWM95RE
BrandNSK
Manufacturer Part #23064CAMC3P55W507
Available to Order

Expected to Arrive ***

Images may not be exact. Please refer to Part # and Description.

Quantity:

$11,887.38

NSK Bearing 23064CAMC3P55W507 Specifications

Bearing Type:

Shaker Screen Bearing
Bore Type:

Round Bore
Cage Material:

Machined Brass
Dynamic Load Rating:

2.264e+006 N
EAN or UPC:

29176767906
Enclosure:

Open
I.D.:

320 mm
Limiting Speed - Grease:

630 rpm
Limiting Speed - Oil:

800 rpm
O.D.:

480 mm
Package Quantity:

1.0 Piece
Radial Internal Clearance Specification:

Greater Than Normal Clearance
Radial Internal Clearance:

C3
Ring Modification:

Lubrication Groove & 3 Holes in Outer Ring is Standard
Shaft Shoulder Diameter [MIN]:

0.118 in
Static Load Rating [MAX]:

3.848e+006 N
Weight:

154.28 LB
Width:

121 mm

Help us improve our product information

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
