NSK

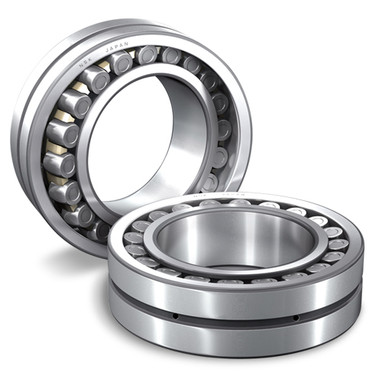

NSK Bearing 23040CAMW507

MFG Part #
23040CAMW507
SKU#
TN52QF

Specifications

Bearing TypeShaker Screen Bearing
Bore TypeRound Bore
Cage MaterialMachined Brass
Dynamic Load Rating1.18e+006 N
EAN or UPC29176824272
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bearing Type:
Shaker Screen Bearing
Bore Type:
Round Bore
Cage Material:
Machined Brass
Dynamic Load Rating:
1.18e+006 N
EAN or UPC:
29176824272
Enclosure:
Open
Fillet Radius:
2.1 mm
I.D.:
200 mm
Limiting Speed - Grease:
1000 rpm
Limiting Speed - Oil:
1300 rpm
Material:
Brass
O.D.:
310 mm
Package Quantity:
1.0 Piece
Radial Internal Clearance Specification:
Normal Clearance
Radial Internal Clearance:
Normal
Ring Modification:
Lubrication Groove & 3 Holes in Outer Ring is Standard
Shaft Shoulder Diameter [MIN]:
0.078 in
Static Load Rating [MAX]:
1.712e+006 N
Weight:
49.383 LB
Width:
82 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$2,198.59
