NSK

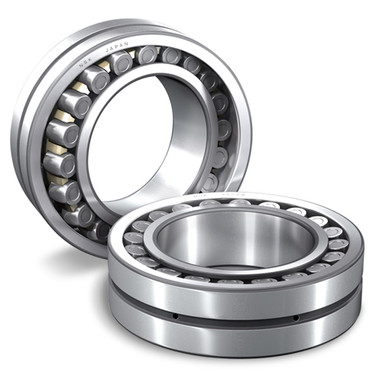

NSK Bearing 22316CAMKE4

MFG Part #
22316CAMKE4
SKU#
HR97YW

Specifications

Bearing TypeRadial Bearing
Bore TypeTapered Bore
Cage MaterialMachined Brass
Dynamic Load Rating87675 lbf
EAN or UPC29176089893
See all product specifications

Need Some Help?

Get real service from real people, that know the products!

Monday - Friday

5:00am - 5:00pm PST

Specs

Bearing Type:
Radial Bearing
Bore Type:
Tapered Bore
Cage Material:
Machined Brass
Dynamic Load Rating:
87675 lbf
EAN or UPC:
29176089893
Enclosure:
Open
Fillet Radius:
2.1 mm
I.D.:
80 mm
Limiting Speed - Grease:
2200 rpm
Limiting Speed - Oil:
2800 rpm
O.D.:
170 mm
Radial Internal Clearance Specification:
Normal Clearance
Radial Internal Clearance:
Normal
Ring Modification:
Lubrication Groove & 3 Holes in Outer Ring is Standard
Static Load Rating [MAX]:
107908 lbf
Weight:
13.599 LB
Width:
58 mm

Description

Since 1916 NSK has manufactured Bearings and Power Transmission components across the globe. From Automotive to Wind Energy – NSK is developing and manufacturing products for a wide variety of applications in key industrial sectors, all over the world. Along with quality, NSK manufacturers more ball bearings than any other manufacturer.
$529.88
